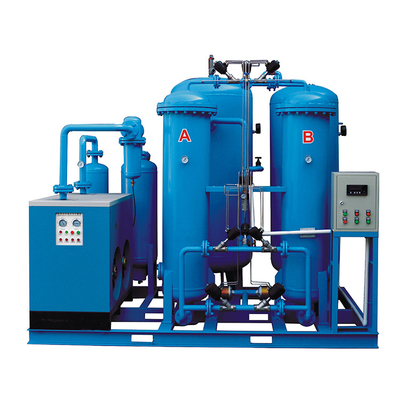

Model | SYO |
Function | Producing oxygen gas with designed flow rate, purity and outlet pressure |
Capacity | 3~200Nm³/h |
Pressure | 0.1~0.4MPa(adjustable) |
Purity | 93%±2%(standard is 93%) |
Dew Point | -43℃(under normal pressure) |
Features | 1.Intelligent, automatic operation, remote/automatic control; 2. Special air distribution system, flow control, automatic compaction technology and other technologies ensure stable operation; 3.Oxygen purity, pressure, flow rate on-line monitoring; 4.Oxygen purity, flow rate are adjustable, meeting customer flexible needs; |
Specification and model | Oxygen production (Nm³/h) | Effective air volume (Nm³/min) | Oxygen purity （%） | Oxygen pressure （MPa） |
SYO-3 | 3 | 0.6 | 93±2% | 0.1 ~ 0.4 MPa |
SYO-5 | 5 | 1.0 | ||
SYO-10 | 10 | 2.0 | ||
SYO-20 | 20 | 4.0 | ||
SYO-30 | 30 | 6.0 | ||
SYO-50 | 50 | 10.0 | ||
SYO-60 | 60 | 12.0 | ||
SYO-80 | 80 | 16.0 | ||
SYO-100 | 100 | 20.0 | ||
SYO-150 | 150 | 30.0 | ||
SYO-200 | 200 | 40.0 |
O2 flow rate | Nm3/hr( or How many cylinders do you want to fill per day(24hours)) | ||||||
O2 purity | % | ||||||
O2 discharge pressure | Bar or MPa | ||||||
Voltages and Frequency | V/PH/HZ | ||||||
Application | |||||||
