The advantages of our generator | ||||||||

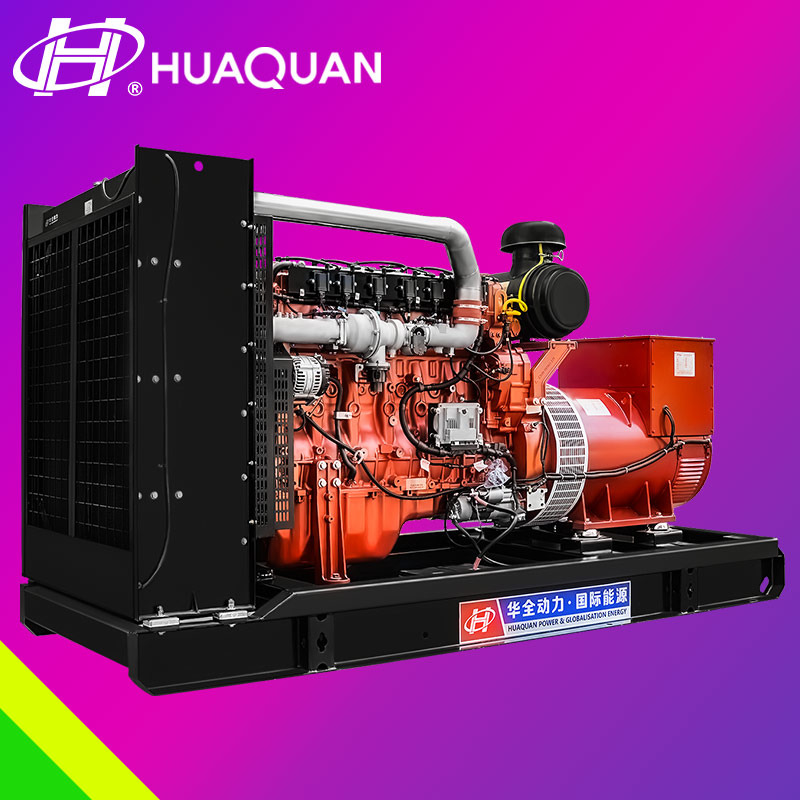

1、Huaquan 250kw gas generator set, dimensions: 2800×850×1600 (L×W×H mm), unit weight: 2100kg. | ||||||||
2、Use Yuchai gas engine, L-type 6 cylinder, ECU control, spark plug ignition, DC24V electric start mode. | ||||||||
3、This gas generator set has a fast load response speed and is matched with Huaquan pure copper brushless motor. It has high voltage regulation accuracy and low voltage waveform distortion rate. It can operate reliably under normal load or standby load. | ||||||||
4、Random information of generator set: original technical documents of gas generator and generator, instruction manual of generator set, test report, etc. | ||||||||
Technical specifications of 250KW Yuchai series gas generator set | ||||||
Technical parameters of generator set： | ||||||
Unit model： | HQ250GF | Steady state voltage adjustment rate (%)： | ≤± 1 | |||
Output power： | 250Kw | Voltage fluctuation rate (%)： | ≤ ± 0.5 | |||
Power factor： | COSΦ = 0.8 (lagging) | Transient voltage adjustment rate (%)： | + 20 ～ －15 | |||
Output voltage： | 400V / 230V | Voltage stabilization time (s)： | ≤1 | |||
Output current： | 450A | Steady state frequency adjustment rate (%)： | ≤ ± 1 | |||
Rated frequency： | 50Hz | Frequency fluctuation rate (%)： | ≤ ± 0.5 | |||
Rated speed： | 1500rpm | Transient frequency adjustment rate (%)： | + 10 ~ -7 | |||
Gas grade: | LNG/CNG | Frequency stabilization time (S)： | ≤3 | |||
Dimensions： | 2800×850×1600（L×W×H mm） | Gas consumption (100% load): | 0.6L/kW·h | |||
Weight： | 2100kg | Acoustic noise (LP7m)： | ≤95dB（A） | |||
Technical parameters of gas engine: | ||||||
Brand/origin： | Yuchaiy Gas Engine | Cooling method： | closed water circulation cooling | |||
model： | YC6T420N-D30 | Ignition method: | Spark plug ignition | |||
Number of cylinders / Dare to mention structure： | 6 / L Type | control method: | ECU control | |||
Bore stroke： | 123 × 145 mm | Intake method： | Turbocharged | |||
Compression ratio： | 11.5：1 | Overload capacity： | 110% | |||
Start mode： | DC 24V Electric start | Speed： | 1500rpm | |||
Technical parameters of generator： | ||||||
Brand： | Huaquan brushless generator | Protection level： | IP22 | |||
Model： | HQF-250 | Wiring mode： | Three-phase four-wire, Y-connection | |||
Rated power： | 250kW | Adjustment method： | AVR (Automatic Voltage Regulator) | |||
Rated voltage： | 400V / 230V | Output frequency： | 50Hz | |||
Insulation class： | H class | Output factor： | COSΦ = 0.8 (lag) | |||
The standard configuration of the generator set is as follows: | ||||||
Ø EFI internal combustion engine (gas); | ||||||
Ø AC synchronous generator (single bearing); | ||||||
ØSuitable for ambient temperature 40 ℃ -50 ℃ radiator water tank, belt driven cooling fan, fan safety shield; | ||||||
Ø Power generation output air switch, standard control screen; | ||||||
Ø Unit steel common base (including: unit vibration damping rubber pad); | ||||||
Ø Dry air filter, fuel oil, lubricating oil filter, start motor, and equipped with self-charging generator; | ||||||
Ø Random information: original technical documents of gas engine and generator, generator set manual, test report, etc. | ||||||
1.What's your power range of Generators? | ||||||||
Answer: We can offer the range from 10kva~1000kva. | ||||||||
2.What's your delivery time? | ||||||||
Answer: Generally,we can delivery in 7 days after we get the deposit. | ||||||||
3.What are the payment methods for buying equipment? | ||||||||
Answer: 1、We accept T/T ,and 30% as the deposit,the balance payment should be paid before shipping. 2、We accept Alibaba credit guarantee payment. 3、We accept bank wire payment. | ||||||||
4.What's your warranty? | ||||||||
Answer: All our products we offer on year warranty. | ||||||||
5.What's your MOQ? | ||||||||
Answer:We accept the MOQ is 1 set. | ||||||||
